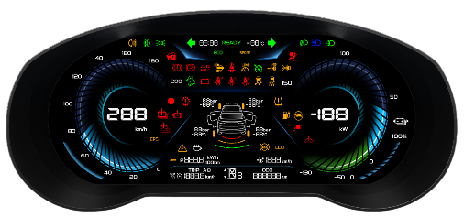

12.3 TFT combination instrument

Adopting the AG&AF Flim surface treatment process for

 a 12.3-inch high-definition TFT display screen with a

resolution of 1920 * 720; The surface is uniformly black

 with AE ≤ 2  Adopting SOC+MCU dual chip solution,

 ITRON+ONX operating system; Support panoramic navigation;

Supports multiple upgrade methods such as OTA and USB.

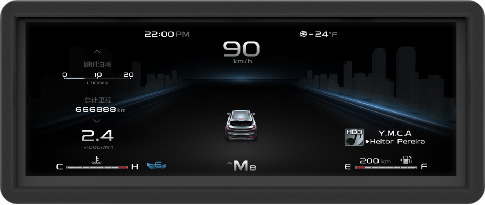

TFT combination instrument at 10.25

1280 * 480 full LCD standard clear screen

The frame rate of LCD display can reach 60 frames per second;

3 sets of UI themes+panoramic navigation display interface, including

 power on/off animation and transition animation between various interfaces

LVDS projection for panoramic navigation display

USB upgrade can be achieved through the vehicle interface;

QNX operating system, supporting OpenGLes2.0 HMI development

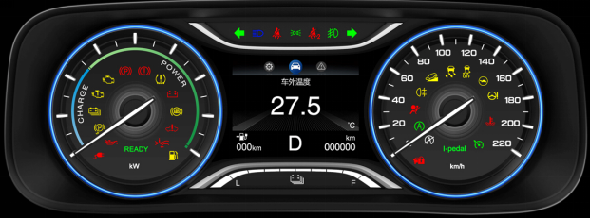

10.25 full segment code combination instrument

The entire code screen adopts anti vibration technology scheme;

The full range code screen supports grayscale display, and the

speaker can support human voice Instrument supports OTA upgrade

When the screen is turned off, the display screen can achieve an integrated black effect.

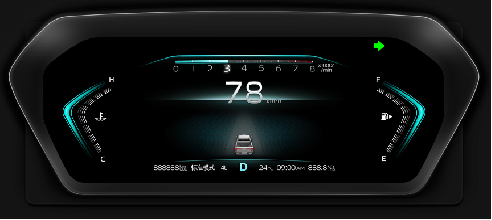

7-hour TFT full screen combination instrument

At 7 o'clock, the LCD fully adheres to the standard clear screen, and the surface

technology adopts AG, AR, AF+ALCF; The frame rate of LCD display can reach 60

 frames per second;Vehicle Ethernet, using Mentor protocol stack, can achieve

 interaction between instruments and vehicle multimedia, Bluetooth phone,

navigation and other functions;

3 sets of UI theme displays, including power on/off animations and transition

 animations between various interfaces. In addition, it supports 12 language

 displays and can upgrade instrument software through FOTA cloud, vehicle

USB interface, diagnostic instrument, and other methods; When the screen is

turned off, the display screen can achieve an integrated black effect.

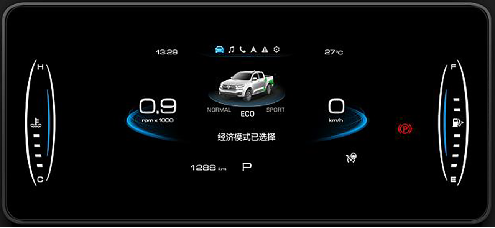

7 o'clock TFT combination instrument

7-inch LCD clear screen with a resolution of 800 * 480;

LCD display frame rate can reach 60 frames per second

3 sets of UI theme displays

The instrument software can be upgraded through OTA mode;

When the screen is turned off, the display screen

 can achieve an integrated black effect.

3.5-hour TFT combination instrument

3.5-inch TFT LCD screen+two pointer displays;

3D stereoscopic text board;

Supports display in 12 languages.

Support real voice communication
