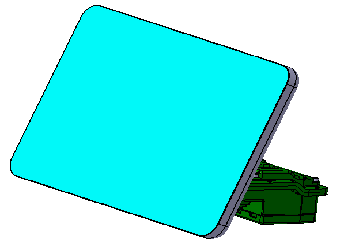

Central control swing+rotating screen

The central control screen that can tilt and rotate left and right is convenient

for the driver to accurately observe the relevant driving information on the

central control. Swing parameters: The screen can tilt left and right by 15 °,

 and can still switch between horizontal and vertical screens after screen swing.

Rotation parameters: horizontal screen → vertical screen, clockwise

 rotation 90 °, vertical screen one horizontal screen, counterclockwise rotation 90 °

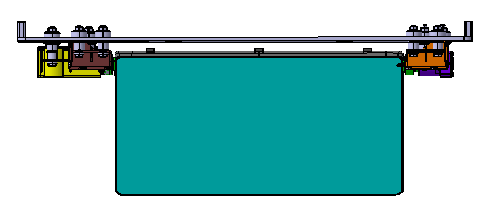

Front passenger sunshade/rear roof mounted screen

The novel form of sunshade/ceiling screen is in line with the innovative

characteristics of current new energy vehicle models, highlighting the

technological sense of new energy vehicle models. Brushless motor: equipped

with Hall effect for easy control, low noise, and long service life. The first and

 second stages adopt worm gear transmission: the worm gear generates a

 high reduction ratio, which is conducive to rapid deceleration and noise

 reduction at the motor end. The synchronous worm gear mechanism

itself can provide greater relative self-locking force due to low transmission

 efficiency, which is conducive to the stability of the screen zero position.

Damping sleeve: provides holding torque to ensure that the screen does

not shake within the range of use angles

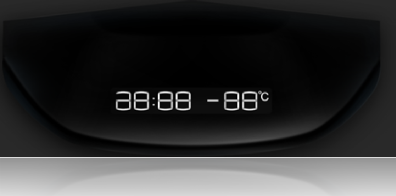

Nezha S Intelligent Rear Panel

Adopting IML technology;

Intelligent display of in car time, temperature, and other information for rear passengers

 to understand in real time; When the screen is turned off,

the display screen can achieve an integrated black effect.

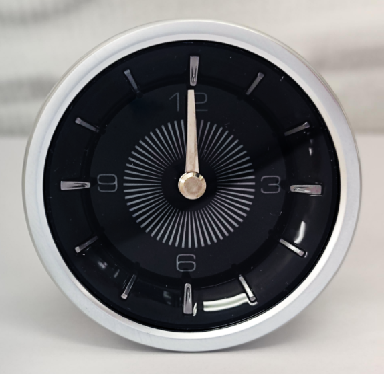

Tank 300 Clock

Adopting anti light and anti glare mirror surfaces;

Instantaneous daily difference+1s/d in sleep mode

The time error between the LIN bus and the operating mode is zero;

Strong metallic texture.

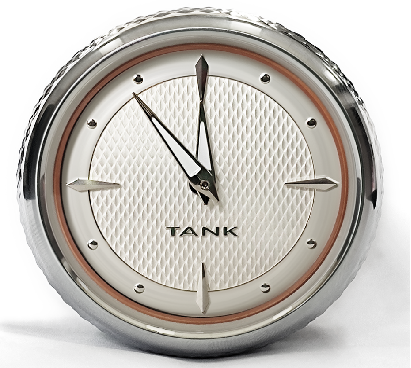

Tank 500 Clock

Adopting anti light reflection and anti glare mirror surfaces;

Instantaneous daily difference+1s/d in sleep mode

Zero time error with LIN bus in working mode;

Strong metallic texture.

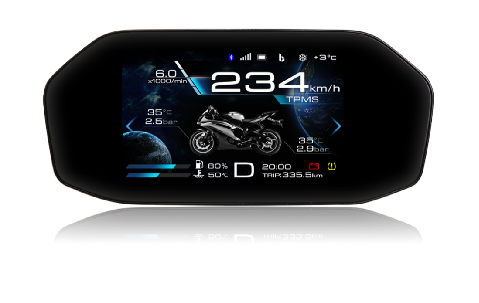

Motorcycle instrument panel -5-hour TFT combination instrument panel

800 * 480 full LCD instrument, operating temperature:

-30~85 ℃, storage temperature: -40~90 ℃, operating

 voltage: 8~16V, surface hardness: 26H, dark current: ≤ 1.5mA;

 2 sets of themes, supporting dynamic backgrounds;

Adopting ambient light detection technology to achieve

automatic adjustment of screen backlight and support

 wireless tire pressure information display;

Support Bluetooth phone, music and other basic entertainment

 information display mobile phone interconnection, using

Bluetooth and WIFI modules to map relevant functions

 and achieve interconnection between mobile phones

 and instruments, displaying maps and navigation information.
